ISOLATED LEVEL TRANSLATOR - SIGNAL CONDITIONER
ISO-55V-05V

The first Isolated Level Translator (Signal Conditioner)
in a new family of RUGID signal conditioner products,
the ISO-55V-05V is an easy and convenient way to
translate and provide isolation for signals in the
-5V to +5V range to common RTU levels of 0V to 5V.

ISO-55v-05v Isolated Level Translator
Features
  • 12-bit resolution
  • Optically isolated to 2500V
  • Unique input range - other ranges available, please ask
  • Low-cost
Specifications
  • Input Range: +/-5V
  • Input Impedance: 200KΩ
  • Output Range: 0-5V
  • Optically isolated to 2500V
  • 12-bit resolution
  • Current Consumption: 40mA @12VDC +/-20%
  • Power Interface: 12VDC
  • Temperature Range: -20 to +85 degrees Celsius
  • Dimensions: 4.3 X 1.6 x 0.8 in.

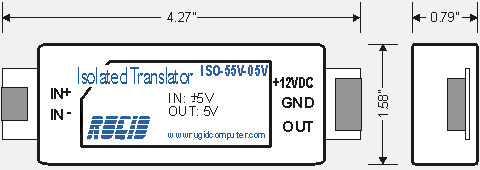

Dimensions
ISO-55V-05V Dimensions

  For a downloadable .pdf of signal conditioner dimensions click here
Price & Order Code
  • Price: $138
  • Order Code: ISO-55V-05V
